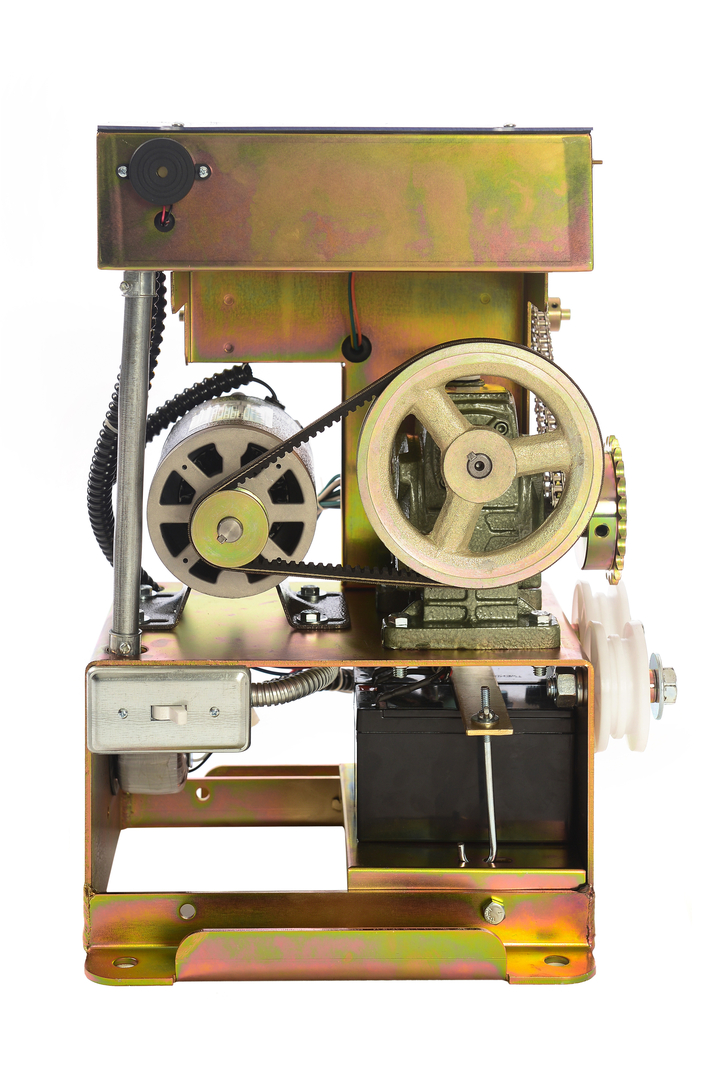

EAGLE 1000 DC
Residential, Light Commercial, Slide Gate Operators
The Eagle-1000-DC gate operator comes equipped with a built in battery backup system which will allow the gate to operate at least 100 cycles when power is lost. It features the state of the art DC diamond control board, the most feature packed and installer friendly control board in the industry. It comes equipped with a heavy duty 24 volt DC motor that can be powered with 120 volt or 220 volt AC power. In residential use the Eagle-1000-DC can be powered by a solar panel when power is not available. A great energy and cost saving option. With this model all accessories such as safety loops, keypad, etc. will be operational. The Eagle-1000-DC is backed by the best in class 5 year warranty and is built for gates up to 27 feet or 700 pounds.
Standard Features
- Solar Ready (Full Operation
- without AC Power)
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- On Board 3 Button Station
- Lightning and Surge Protection
- One Pass(No Tailgate)
- Motor Brake
- 24 VDC Output with Relay for MAG Lock
- Dry Contact Relay (NO/NC) for Accessories
- 24 VDC Auxiliary Power Output
- Stop Reverse
- Auto-Closer Timer (1-60 sec.)
Installation Instructions
- Easy to follow instructions. Available in Spanish.
| Image | Metal Title | Description | Length |
|---|---|---|---|
|
|
Power Failure Operation | Selectable Power Fail Open, Close or Continuous Operation Minimum 100 Cycles on Battery Backup Auto Power Save Mode | 23" (h) x 15 1/2" (w) x 16 1/2" (d) |
|
|
Mechanical | Chain: #41 Nickel Plated (20 feet) Gear Reducer: Size 50 Cover: All-Weather/UV Resistant (HDPE) Chassis: 1/4" Zinc Plated Steel to Resist Corrosion | 23" (h) x 15 1/2" (w) x 16 1/2" (d) |
|
|
Power | Battery: Two 7 Ah 12 V 1/2 HP Instant Reversing 24 VDC Motor Power Input: 120/220 VAC or 24 V Solar | 23" (h) x 15 1/2" (w) x 16 1/2" (d) |
|
|
Optional | Solar Panel 9 Ah or 12 Ah Batteries (12 V) | 23" (h) x 15 1/2" (w) x 16 1/2" (d) |
|
|
Operating Classification | Class I, II, III & IV | 23" (h) x 15 1/2" (w) x 16 1/2" (d) |
|
|
Warranty | 5-Year Limited | 23" (h) x 15 1/2" (w) x 16 1/2" (d) |
|
|
Hardware | No-Weld Chain Brackets UHMW Silent Idler Wheels Audio Alarm Pre-Wired Receiver Terminal | 23" (h) x 15 1/2" (w) x 16 1/2" (d) |
|
|
Gate Capacity & Operation | Maximum Gate: 700 lbs & 27 ft 12" Per Second Travel Rated Continuous Duty | 23" (h) x 15 1/2" (w) x 16 1/2" (d) |
|
|
Shipping Weight | Eagle-1000-DC: 125 lbs |
