Eagle 1000 FR
EAGLE 1000 FOOT RELEASE
Residential, Light Commercial, Slide Gate Operators

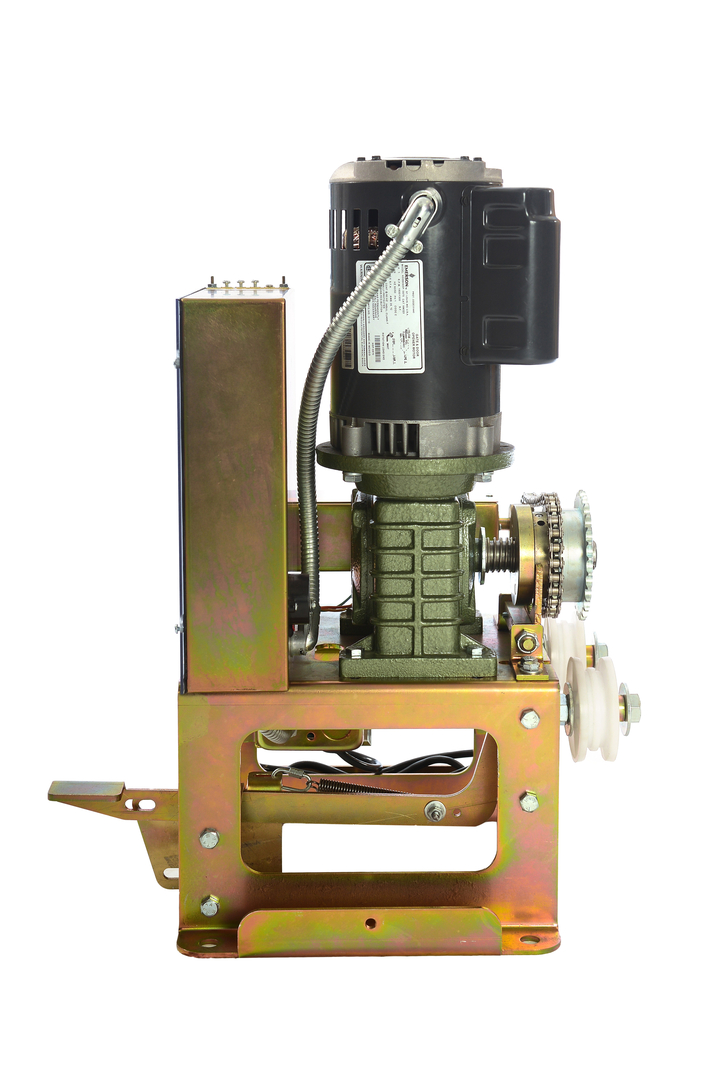

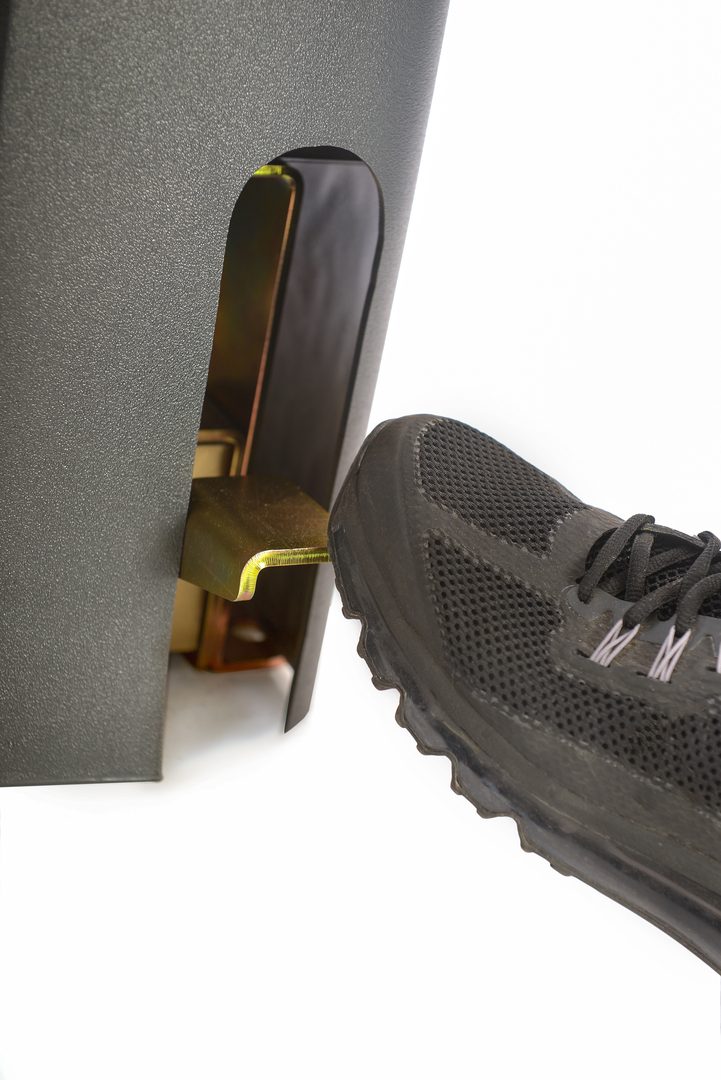

For easy access, The Eagle-1000-FR model allows you to push the gate open during a power outage, in case of an emergency, with the use of a foot pedal, that disengages the operator from the gate. The foot pedal can be secured with a pad lock in the closed or open position and can be used on gates up to 27 feet or 600 pounds. The Eagle-1000-FR comes with a 5 year warranty and is equipped with a ½ horsepower continuous duty direct drive motor along with our Diamond control board. The most feature packed and installer friendly control board in the industry.
Standard Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- One Pass (No Tailgate)
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Partial Open
- Stop-Reverse
- Auto-Close Timer (1-60 sec.)
Optional
- Power I Battery Backup: Provides up to 40-80 Cycles
Installation Instructions
- Easy to follow instructions. Available in Spanish.
| Image | Metal Title | Description | Length |
|---|---|---|---|
|
Operating Classification | Class I, II, III & IV | 22″ (h) x 15″ (w) x 13 1/2″ (d) |
|
|
Warranty | 5-Year Limited (Residential) | 22″ (h) x 15″ (w) x 13 1/2″ (d) |
|
|
Mechanical | Chain: #41 Nickel Plated (20′) Gear Reducer: Size 50 Swing Arm with No-Pinch Design Cover: All-Weather/UV Resistant (HDPE) Chassis: 3/16″ Zinc Plated Steel Power Disconnect (1/2 HP) | 22″ (h) x 15″ (w) x 13 1/2″ (d) |
|
|
Manual Release | Fail-Safe (FSF): Push to open Fail-Secure (FSC): Use Crank to open | 22″ (h) x 15″ (w) x 13 1/2″ (d) |
|
|
Power | 1/2 HP Continuous Duty AC 115 VAC @ 60 HZ 5.7 AMP | 22″ (h) x 15″ (w) x 13 1/2″ (d) |
|
|
Hardware | No-Weld Chain Brackets UHMW Silent Idler Wheels Audio Alarm Pre-Wired Receiver Terminal | 22″ (h) x 15″ (w) x 13 1/2″ (d) |
|
|
Gate Capacity & Operation | Maximum Gate for 1000-FSF and 1000-FCF: 27 ft & 600 lbs Maximum Gate for 1000-FR: 27 ft & 700 lbs 12” per second travel Rated Continuous Duty | 22″ (h) x 15″ (w) x 13 1/2″ (d) |
|
|
Shipping Weight | Eagle-1000-FSF: 80 lbs Eagle-1000-FSC: 80 lbs | 22″ (h) x 15″ (w) x 13 1/2″ (d) |
