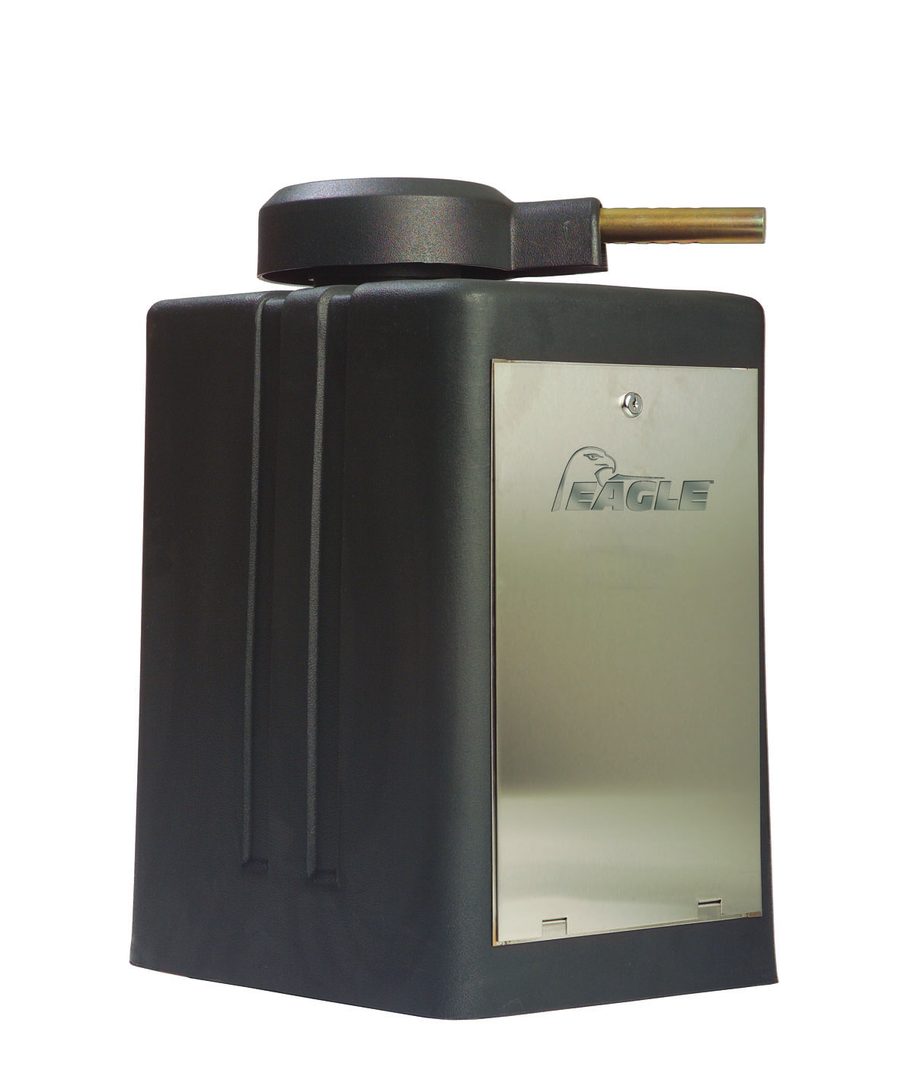

EAGLE 200
Commercial Swing Gate Operators
Enjoy heavy duty power and reliability with worry-free operation even during a complete power failure with The Eagle 200-DC gate operators. With 2 models to choose from(standard & HD) these solar ready operators come equipped with a built in battery backup system which will allow the gate to operate at least 100 cycles when power is lost. Both models use the state of the art DC diamond control board, the most feature packed and installer friendly control board in the industry. They also feature a heavy duty 24 volt DC motor that can be powered with 120 volt or 220 volt AC power. The Eagle 200-DC can be powered by a solar panel when power is not available. A great energy and cost saving option. All accessories such as safety loops, keypad, etc. will be operational. Backed by our best in class 5 year warranty, the Eagle-200-DC is built for gates up to 20 feet or 1000lbs.
Standard Features
- Solar Ready (Full Operation without AC Power)
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- On Board 3 Button Station
- Lightning and Surge Protection
- One Pass(No Tailgate)
- Motor Brake
- 24 VDC Output with Relay for MAG Lock
- Dry Contact Relay (NO/NC) for Accessories
- 24 VDC Auxiliary Power Output
- Stop Reverse
- Auto-Closer Timer (1-60 sec)
Gate Capacity & Operation
- Eagle 200-DC Maximum Gate: 1000 lbs &
20 ft - EAgle 200-DC-HD Maximum Gate: 1500 lbs & 24 ft
- 18 Seconds to open (0-90 degrees)
- Rated Continuous Duty
Installation Instructions
- Easy to follow instructions. Available in Spanish.
Description
| Image | Metal Title | Description | Length |
|---|---|---|---|
|
Power Failure Operation | Selectable Power Fail Open, Close or Continuous Operation Minimum 100 Cycles on Battery Backup Auto Power Save Mode Quick Release Lever (Manual Operation) | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
|
|
Operating Classification | Class I, II, III & IV | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
|
|
Warranty | 5 Year Limited | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
|
|

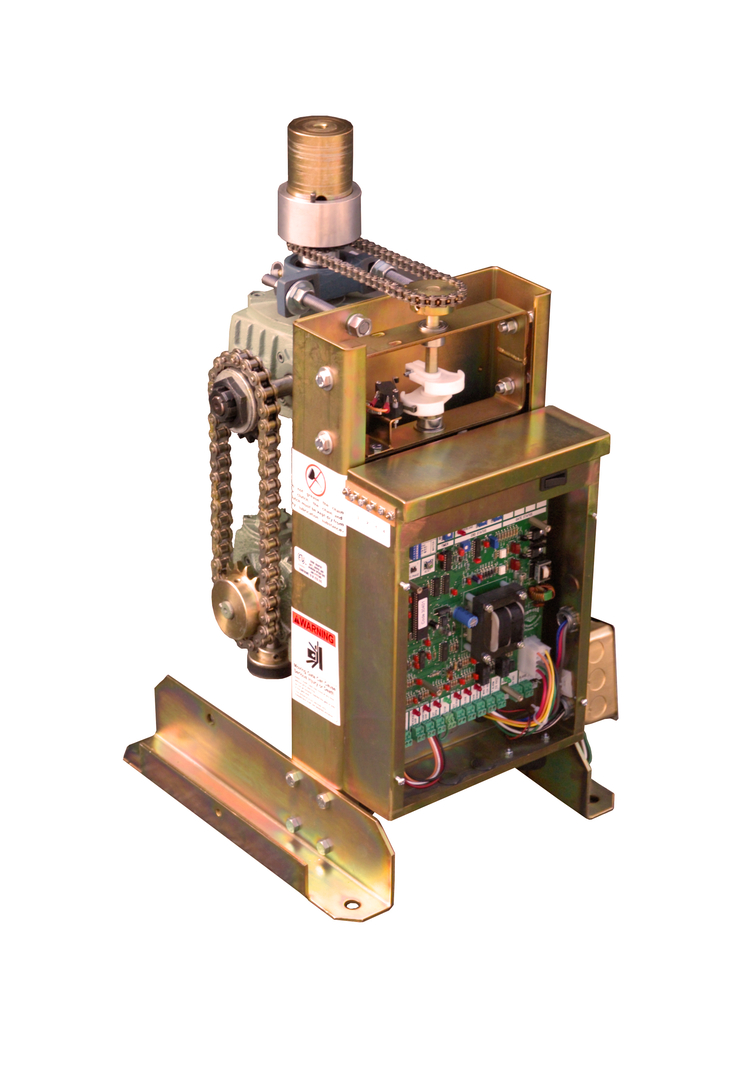

Mechanical | Drive Chain: #50 Nickel Plated Gear Reducer: Size 60 & 40 Swing Arm with No-Pinch Design Cover: All-Weather/UV Resistant (HDPE) Chassis: 3/16" Zinc Plated Steel Auxiliary 120 VAC Outlet (AC Power Source Only) | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
|
|
Manual Release | Quick Release Lever | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
|
|
Power | Battery: Two 12 V DC, 9 Ah 1/2 HP Instant Reversing 24 VDC Motor 3/4 HP Instant Reversing 24 VDC Motor Power Input: 120/220 VAC or 24 V Solar | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
|
|
Optional | Solar Panel No Weld Swing Arm Assembly for Uphill Installation | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
|
|
Hardware | No-Weld Swing Arm Assembly Audio Alarm Pre-Wired Receiver Terminal | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
|
|
Shipping Weight | Eagle 200-DC: 230 lbs Eagle 200-DC-HD: 245 lbs | 29 1/4" (h) x 18 3/4" (w) x 22 1/2" (d) |
