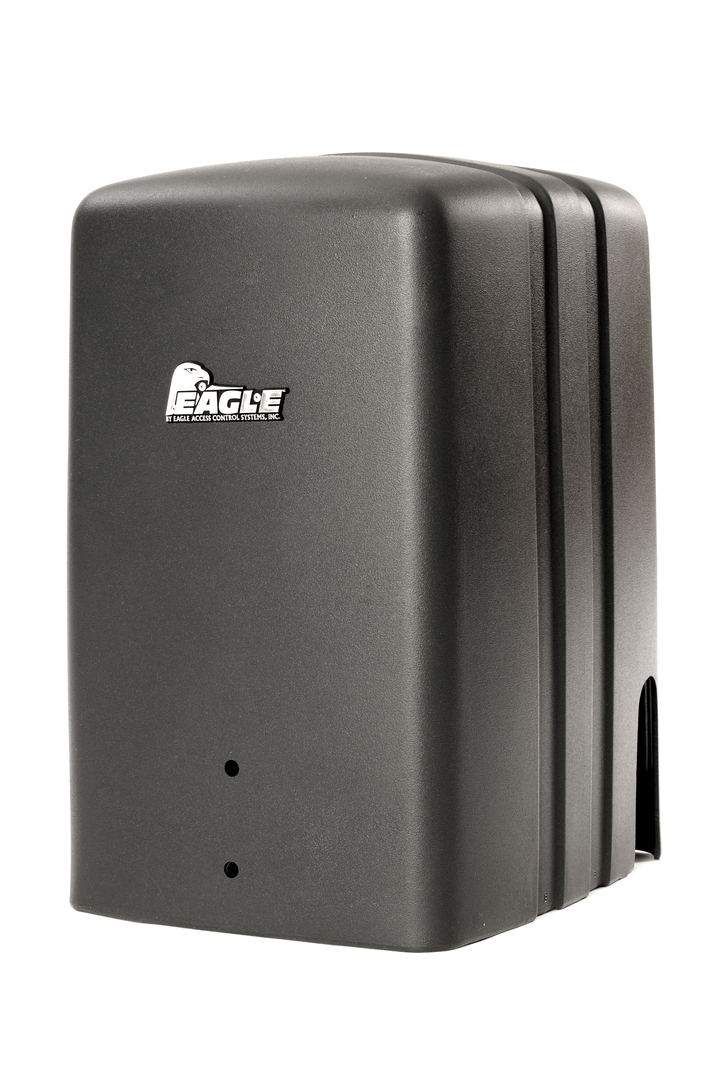

EAGLE 2000 APT
Commercial, Industrial, Slide Gate Operators
The Eagle-2000-APT series is designed to deliver rugged durable power for the most demanding applications. Whether it be for apartment buildings, gated communities or industrial sites the Eagle-2000-APT series offers 3 models to fit your exact needs. It uses the state of the art Diamond control board, the most feature packed and installer friendly control board in the industry. It also comes equipped with 20 feet of nickel plated chain and a no weld chain kit for easy installation. All models are backed with our best in class 5 year warranty.
The Eagle-2000-APT comes with 3 models to choose from:
Eagle-2000-APT
The Eagle-2000-APT standard model features a 1 horse power heavy duty AC motor and is used on gates up to 50 feet or 2500 pounds.
Eagle-2000-APT-1.5HP
The APT-1.5 model features dual three quarter horse power heavy duty AC motors and is used on gates up to 50 feet or 3500 pounds.
Eagle-2000-APT-DM
The APT-DM model features dual 1 horse power heavy duty AC motors. It is used for high traffic applications and built for gates up to 50 feet or 2500 pounds.
Standard Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- One Pass (No Tailgate)
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Partial Open
- Stop-Reverse
- Auto-Close Timer (1-60 sec.)
Gate Capacity & Operation
- Maximum Gate for 2000-APT and
2000-APT-DM: 50 ft & 2500 lbs - Maximum Gate for 2000-APT-1.5: 50 ft & 3500 lbs
- 12” per second travel
- Rated Continuous Duty
Installation Instructions
- Easy to follow instructions.
Available in Spanish.
Description
| Image | Metal Title | Description | Length |
|---|---|---|---|
|
|
Compliance | UL 325 abd UL 991 ETL Listed | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Operating Classification | Class I, II, III & IV | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Warranty | 5-Year Limited (Commercial) 7-Year Limited (When Used in Residential Application) | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Mechanical | Chain: #41 Nickel Plated (20′) Gear Reducer: Size 50 Cover: All-Weather/UV Resistant (HDPE) Chassis: 1/4″ Zinc Plated Steel to Resist Corrosion Power Disconnect (1/2 HP) Auxiliary 120 VAC Power Outlet (2) | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Manual Release | Fail-Secure (FSC): Use Crank to open Eagle 2000-APT Eagle 2000-APT-1.5HP Eagle 2000-APT-DM | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Power | Eagle-2000-APT 1 HP Continuous Duty AC 115 VAC @ 60 HZ 10.5 AMP Eagle 2000-APT-1.5HP Dual 3/4 HP Continuous Duty AC Synchronized Operation 115 VAC @ 60 HZ 16.6 AMP Eagle 2000-APT-DM Dual 1 HP Continuous Duty AC /Motor 1 to Open / Motor 2 to Close 115 VAC @ 60 HZ 10.5 AMP | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Hardware | No-Weld Chain Brackets UHMW Silent Idler Wheels Audio Alarm Pre-Wired Receiver Terminal Hand Crank (FSC Models Only) | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Shipping Weight | Eagle-2000-APT: 150 lbs Eagle-2000-APT-1.5HP: 175 lbs Eagle-2000-APT-DM: 185 lbs | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Optional | Power II Battery Backup (for 1 HP) Provides up to 40-80 Cycles | 26″ (h) x 18″ (w) x 17″ (d) |
