Eagle 2000 FR
EAGLE 2000 FOOT RELEASE
Commercial Slide Gate Operators

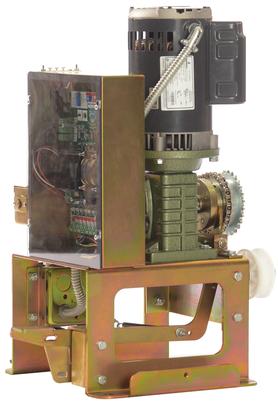

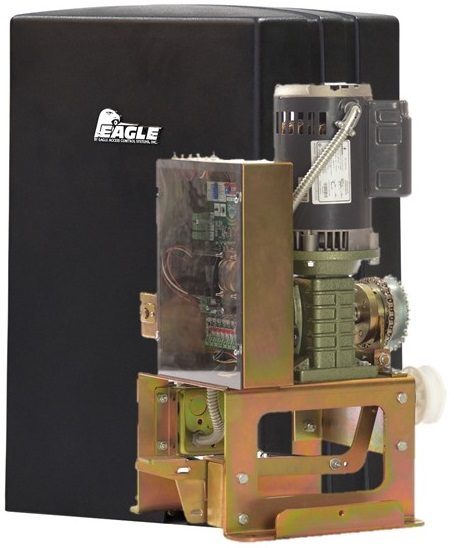

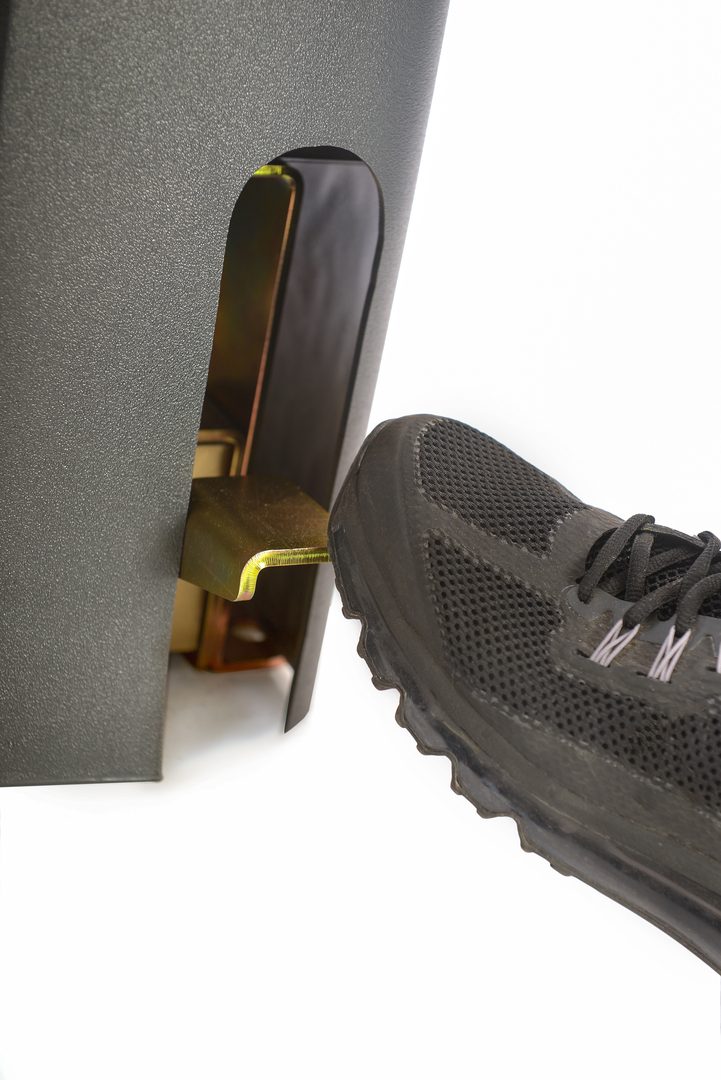

For easy access, The Eagle-2000-FR model allows you to push the gate open during a power outage, in case of an emergency, with the use of a foot pedal, that disengages the operator from the gate. The foot pedal can be secured with a pad lock in the closed or open position and can be used on gates up to 45 feet or 1000 pounds. The Eagle-2000-FR comes with a 5 year commercial and 7 year residential warranty. It is equipped with a ½ horsepower continuous duty direct drive motor along with our Diamond control board. The most feature packed and installer friendly control board in the industry. For heavier applications we recommend the Eagle-2000-FR-1HP model, which has a 1 horsepower motor and built for gates up to 45 feet or 2000 pounds.
Standard Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- One Pass (No Tailgate)
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Partial Open
- Stop-Reverse
- Auto-Close Timer (1-60 sec.)
Installation Instructions
- Easy to follow instructions.
Available in Spanish.
Optional
- Power I Battery Backup (for 1/2 HP)
- Power II Battery Backup (for 1 HP) Provides up to 40-80 Cycles
| Image | Metal Title | Description | Length |
|---|---|---|---|
|
Compliance | UL 325 abd UL 991 ETL Listed | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Operating Classification | Class I, II, III & IV | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Warranty | 5-Year Limited (Commercial) 7-Year Limited (When Used in Residential Application) | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Mechanical | Chain: #41 Nickel Plated (20′) Gear Reducer: Size 50 Cover: All-Weather/UV Resistant (HDPE) Chassis: 1/4″ Zinc Plated Steel to Resist Corrosion Power Disconnect (1/2 HP) Auxiliary 120 VAC Power Outlet | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Manual Release | Fail-Safe (FSF): Push to open Fail-Secure (FSC): Use Crank to open Eagle 2000 Eagle 2000-1HP Eagle 2000-DM | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Power | Eagle 2000- 1/2 HP Continuous Duty AC 115 VAC @ 60 HZ 5.7 AMP Eagle 2000 1HP – Dual 1/2 HP Continuous Duty AC 115 VAC @ 60 HZ 11.4 AMP Eagle 2000 DM – Dual 1/2 HP Continuous Duty AC Motor 1 to Open / Motor 2 to Close 115 VAC @ 60 HZ 5.7 AMP | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Hardware | No-Weld Chain Brackets UHMW Silent Idler Wheels Audio Alarm Pre-Wired Receiver Terminal Hand Crank (FSC Models Only) | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Gate Capacity & Operation | Maximum Gate for 2000-FSF, 2000-FSC, 2000-FR: 45 ft & 1000 lbs Maximum Gate for 2000-DM and 2000-1HP: 45 ft & 2000 lbs Maximum Gate for 2000-FR-1HP: 50 ft & 2000 lbs 12” per second travel Rated Continuous Duty | 26″ (h) x 18″ (w) x 17″ (d) |
|
|
Shipping Weight | Eagle-2000-FSF: 125 lbs Eagle-2000-FSC: 125 lbs Eagle-2000-1HP: 150 lbs Eagle-2000-DM: 150 lbs | 26″ (h) x 18″ (w) x 17″ (d) |
