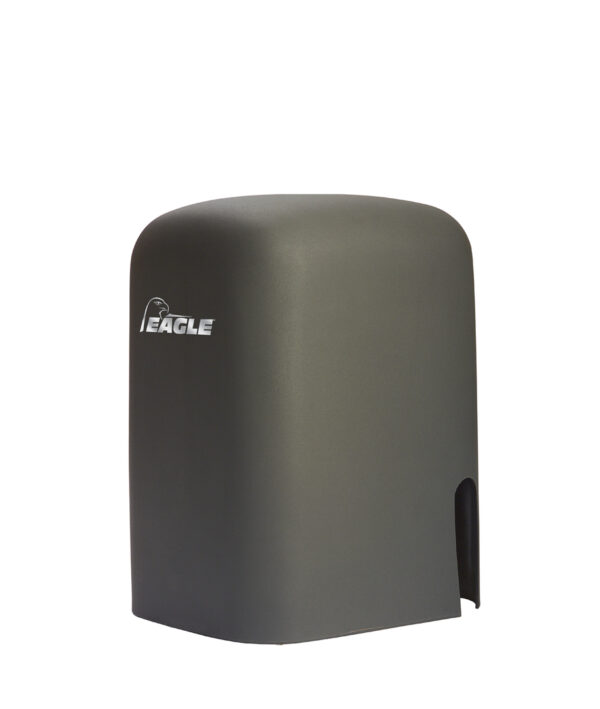

EAGLE I
Residential Slide Gate Operators
Manufactured with the same quality and engineering as our larger commercial and industrial models, the Eagle-I slide gate operator is designed for residential applications and is built for gates up to 18 feet or 300lbs. 20 feet of nickel plated chain and a no weld chain kit are standard and help for easy installation. This model is equipped with a 1/2 horse power motor continuous duty AC motor and uses the state of the art AC mini control board, backed of course by our best in class 5 year warranty. Residential access control is made easy with this fail secure model.
Standard Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Auto-Close Timer (1-60 sec.)
Optional
- Power I Battery Backup
- Provides up to 40-80 Cycles
Installation Instructions
- Easy to follow instructions. Available in Spanish.
| Image | Metal Title | Description | Length |
|---|---|---|---|
|
Operating Classification | Class I | 20″ (h) x 15″ (w) x 12″ (d) |
|
|
Warranty | 5-Year Limited (Residential) | 20″ (h) x 15″ (w) x 12″ (d) |
|
|
Mechanical | Drive Chain: #41 Nickel Plated (20) Gear Reducer: Size 40 Cover: All-Weather/UV Resistant (HDPE) Chassis: Zinc Plated Steel to Resist Corrosion Power Disconnect (1/2 HP) | 20″ (h) x 15″ (w) x 12″ (d) |
|
|
Manual Release | Fail-Secure(FSC): Use Crank to Open | 20″ (h) x 15″ (w) x 12″ (d) |
|
|
Power | 1/2 HP Continuous Duty AC 115 VAC @ 60 HZ 5.2 AMP | 20″ (h) x 15″ (w) x 12″ (d) |
|
|
Hardware | No-Weld Chain Brackets UHMW Silent Idler Wheels Audio Alarm Pre-Wired Receiver Terminal | 20″ (h) x 15″ (w) x 12″ (d) |
|
|
Manual Release | Fail-Secure(FSC): Use Crank to Open | 20″ (h) x 15″ (w) x 12″ (d) |
|
|
Gate Capacity & Operation | Maximum Gate: 18 ft & 300 lbs 12” per second travel Rated Continuous Duty | 20″ (h) x 15″ (w) x 12″ (d) |
|
|
Shipping Weight | Eagle-I: 75 lbs | 20″ (h) x 15″ (w) x 12″ (d) |
