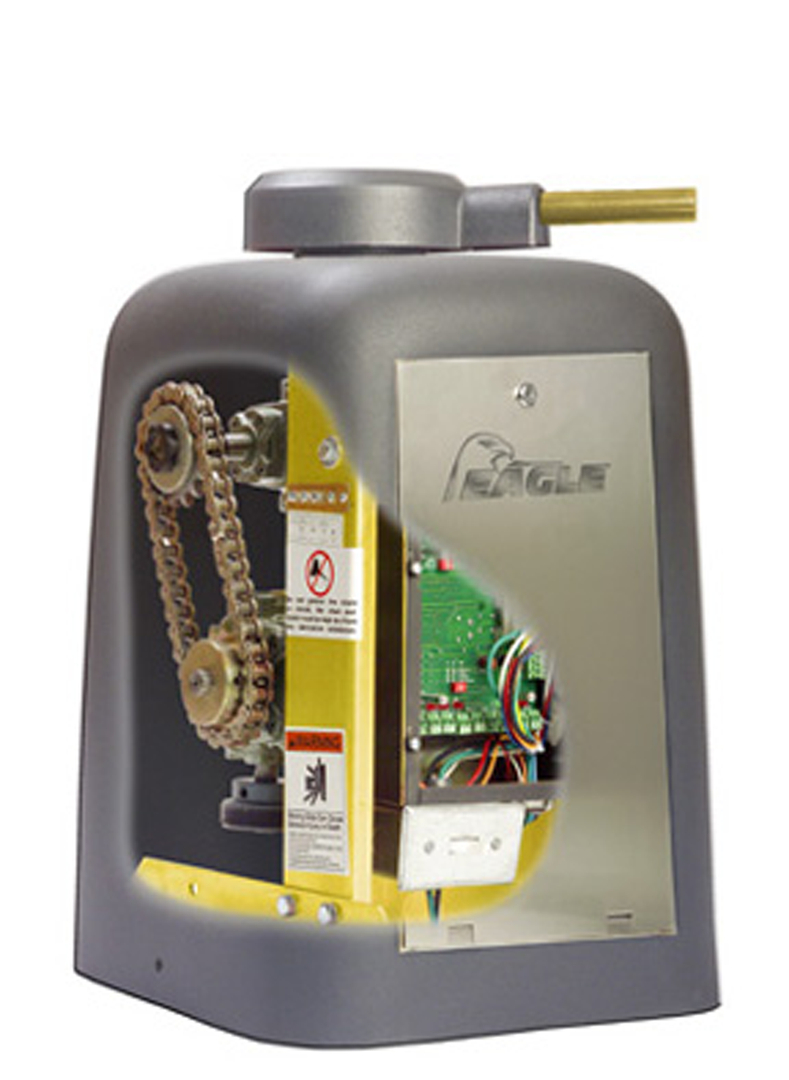

EAGLE II
Residential Swing Gate Operators
Manufactured with the same quality and engineering as our larger commercial and industrial models, the Eagle-II swing gate operator is designed for residential applications and is built for gates up to 14 feet or 400 lbs. It features the state of the art AC mini control board and comes with a swivel arm hardware that includes a quick release mechanism for operation during a power outage. This model is equipped with a 1/2 horse power motor continuous duty AC motor, a quiet gear box and quality components throughout. The Eagle-II is backed by our best in class 5 year warranty.
Standard Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Auto-Close Timer (1-60 sec.)
Optional
- Power I Battery Backup. Provides up to 40-80 Cycles
- Provides up to 40-80 Cycles
Installation Instructions
- Easy to follow instructions. Available in Spanish.
| Image | Metal Title | Description | Length |
|---|---|---|---|
|
Operating Classification | Class I | 20″ (h) x 16 1/2″ (w) x 15″ (d) |
|
|
Warranty | 5-Year Limited (Residential) | 20″ (h) x 16 1/2″ (w) x 15″ (d) |
|
|
Mechanical | Drive Chain: #50 Nickel Plated Gear Reducer: Size 50 & 40 Swing Arm with No-Pinch Design Cover: All-Weather/UV Resistant (HDPE) Chassis: Zinc Plated Steel to Resist Corrosion Power Disconnect (1/2 HP) | 20″ (h) x 16 1/2″ (w) x 15″ (d) |
|
|
Manual Release | Quick Release Lever | 20″ (h) x 16 1/2″ (w) x 15″ (d) |
|
|
Power | 1/2 HP Continuous Duty AC 115 VAC @ 60 HZ 5.7 AMP | 20″ (h) x 16 1/2″ (w) x 15″ (d) |
|
|
Hardware | No-Weld Swing Arm Assembly Audio Alarm Pre-Wired Receiver Terminal | 20″ (h) x 16 1/2″ (w) x 15″ (d) |
|
|
Gate Capacity & Operation | Maximum Gate: 14 ft & 400 lbs 18 seconds(approx.) to open (0-90 degrees) Rated Continuous Duty | 20″ (h) x 16 1/2″ (w) x 15″ (d) |
|
|
Shipping Weight | Eagle-II: 90 lbs |
