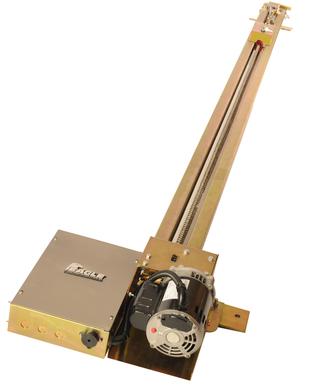

The Eagle-OH overhead gate operator is designed for commercial applications and is built for gates up to 20 feet or 600 pounds. It features the state of the art diamond control board and a fully assembled trolley system with a quick release mechanism in case of a power outage. This model offers 3 different track systems for 8 foot, 10 foot and 12 foot high gates. The aluminum C-face gear reducer keeps your overhead operator quiet and running smooth with fewer moving parts while delivering the power from a 1/2 horse power continuous duty AC motor. The Eagle-OH is backed by our best in class 5 year warranty.
Eagle-OH-1HP
The Eagle-OH-1HP model showcases all the features in the standard operator but comes equipped with a 1 horse power continuous duty AC motor. It is built for gates up to 22 feet or 750 pounds.
Standard Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Partial Open
- Stop-Reverse
- Auto-Close Timer (1-60 sec.)
Optional
- External Battery Back-up Supply
- Power I Battery Back-up for 1/2 HP
- Power II Battery Back-up for 1 HP
- Provides 100 Cycles
Installation Instructions
- Easy to follow instructions.
Available in Spanish.
| Image | Metal Title | Description | Length |
|---|---|---|---|
|
Operating Classification | Class I, II, III & IV |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
|
|
Warranty | 5-Year Warranty |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
|
|
Mechanical | Chain: #40 Nickel Plated Gear Reducer: C-Face Sized 50 Aluminum Chassis: 3/16” Zinc Plated to Resist Corrosion Cover: All-Weather/UV Resistant (HDPE) Power Disconnect (1/2 HP) |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
|
|
Three Sized Rails | 8, 10 and 12 ft |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
|
|
Manual Release | Quick-Release Trolley Assembly |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
|
|
Power | Eagle-OH: 1/2 HP Continuous Duty AC 115 VAC @ 60Hz 5.7 AMP Eagle-OH-1HP: 1 HP Continuous Duty AC Synchronized Operation 115 VAC @ 60Hz 10.5 AMP Power Input: 120/220 VAC or 24 V Solar |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
|
|
Hardware | Header Bracket for Wall or Ceiling Mount Mid Rail Support Brackets(10’ and 12’ Rails) UHMW Silent Trolley Audio Alarm Pre-Wired Receiver Terminal |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
|
|
Gate Capacity & Operation | Eagle-OH Maximum Gate: 600 lbs & 20 ft Eagle-OH-1HP Maximum Gate: 750 lbs & 22 ft Rated Continuous Duty |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
|
|
Shipping Weight | Eagle-100: 125 lbs |
Height: 9 ½” Rail: 8’, 10’ & 12’ |
